Standard Penetration Test |

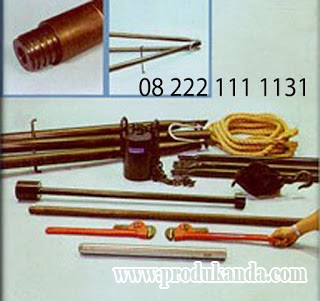

Standard Penetration Test
(item code : RS-130A)
|
Dimension (l x w x h): |
330 x 60 x 60 cm |
|
Gross Weight: |
445 kg |
|
ASTM D-1586 |
AASHTO T-206 |
||
|
For driving a split barrel sampler to obtain a representative soil sample and measure the soil resistance to penetration. |
|||
|
RS-131 |
Split Barrel Sampler |
Herdened machined steel, 1 3/8″ i.d., 18″ length |
1 Set |
|
RS-132 |
Sampling Rod |
Steel pipe, 1.5 m length |
20 Pcs |
|
RS-133 |
Drive Weight Assembly |
||
|
Consist of |
|||
|
RS-133.1 |
Hammer |
Steel, 63.5 kg weight |
1 Pc |
|
RS-133.2 |
Anvil |
Machined Steel |
1 Pc |
|
RS-133.3 |
Guide Rod |
Steel, 76.2 cm drop height |
1 Pc |
|
|
|||
|
RS-134 |
Tripod Assembly |
||
|
Consist of |
|||
|
RS-134.1 |
Tripod Stand |
Steel pipe |
1 Pc |
|
RS-134.2 |
Pulley |
20 cm dia |
1 Pc |
|
RS-134.3 |
Rope |
3/4″ dia x 15 mtr |
1 Rol |
|
|
|||
|
RS-137 |
Vertical Guide |
Machined Steel |
1 Pc |
|
RG-739 |
Pipe Wrench |
24″ length |
2 Pcs |
Also required, but not part of this set:
|
RG-755 |
Plastic Bag. |
